P-X series industrial gear units

Many applications in bulk materials handling or environmental and recycling technology depend on drives with high torques. SEW-EURODRIVE has the solution: a perfectly coordinated unit consisting of planetary gear units and standardized primary bevel-helical gear units.

High torque, high thermal rating

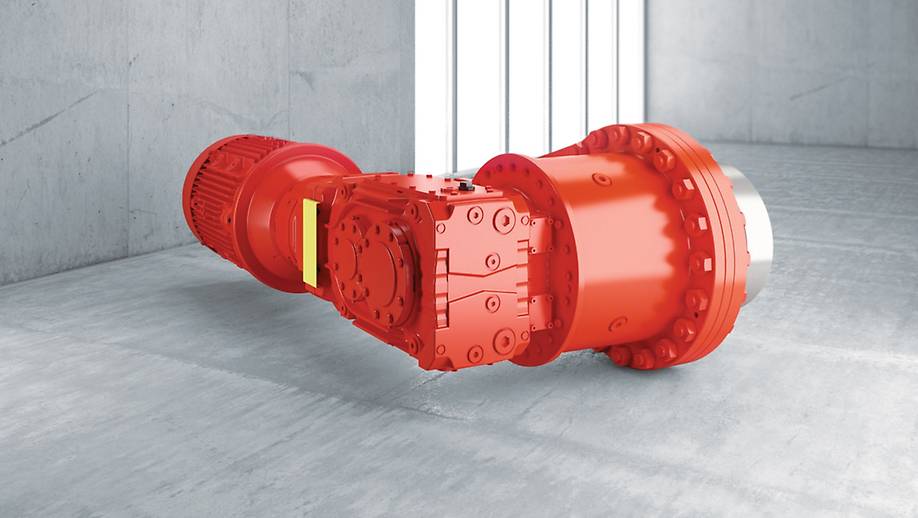

For high torques at mean speeds: the planetary gear units of the P-X series
High torques, mean speeds: P-X series planetary gear units
High torques, mean speeds: P-X series planetary gear units

If you need a compact, cost-effective solution with high thermal ratings, our planetary gear units of the P-X series are the right solution. These standardized, powerful industrial gear units combine planetary gear units of the P series with primary gear units of the proven X series of industrial gear units. As an added benefit, all the mounting options and optional features of the X series are also available for this solution.

To achieve the best possible thermal ratings, we take a holistic approach to surface cooling in the P-X gear unit: On the one hand, the cooling fins on the primary gear unit housing significantly increase the surface area of the gear unit. On the other hand, the radial fan in the motor adapter generates a strong air flow. This effectively cools the areas where the main heat is generated.

In addition, a special feature provides even more cooling in the P-X transmission. The cast-on intermediate flange on the primary gearbox connects the two gear units, creating a shared oil chamber. This ensures optimum oil circulation between the two gear units. In this way, excess residual heat is dissipated from the planetary gear unit by cooling oil.

The P-X series planetary gear unit thus combines all the advantages of two pioneering industrial gear unit concepts.

Compact, flexible and cost-effective

Whether hollow shaft or solid shaft, with or without a key, smooth or spline according to DIN 5480, horizontal, vertical or angled mounting position – the P-X series offers you a number of options.

Cost advantages result for your stockholding - thanks to the reduced number of spare gear units for the machines with dual drives. This is because the P-X gear unit, in line with its X series primary bevel helical gear unit, has a reversible housing that can be used flexibly on both sides of the machine. And coupled with the high level of operational reliability, maintenance and servicing costs can also be reduced.

Get in touch with us.

  • Our experts understand your industry and its requirements.
  • Our global network ensures we are there wherever and whenever you need us.
  • We have the expertise and the tools to provide optimum advice and support.

Compact, flexible and economical

Your benefits

  • Space saving

    due to a more compact design than other common types of gearboxes of the same performance.
  • High operational reliability

    through a robust gearbox design according to the latest calculation methods and through an FEM-optimized, bending-resistant housing design.
  • Reduced costs

    thanks to the high thermal gear performance, which means that you can dispense with cost-intensive, external cooling systems, depending on the condition.
  • Flexible installation

    thanks to many available alternatives such as hollow shaft with shrink disc or solid shaft with keyed connection, mounting the drive to a machine is easy.
  • Short delivery times

    because our standardized P-X gear units are ready for delivery within 10 weeks.
  • Complete documentation

    via our online support, which provides you with operating instructions, dimension sheets and 3D models at the push of a button.

In detail: P-X series planetary gear units with primary bevel-helical gear unit X


Features and properties:

  • High thermal rating
  • Invertible housing
  • Universally applicable due to distinctive modular technology
  • Various, predefined additional equipment and options
  • Can be used in low temperature ranges < -25 °C
  • Customer specific adaptations are possible

Technical data

Close table
Gear unit type Gear ratio
Nominal torque MN2
P-X bevel-helical planetary gear unit: 160 – 550 100 – 500
We have stored a table for you here.

We also offer tailored project solutions upon request.

Areas of application

All applications that require mean output speeds and a high torque. For example:

  • Apron feeders and bucket wheel drives in mining
  • Filling processes in the cement industry
  • Material processing systems, e.g. mixers, rotary filters
  • Drum washing systems in the pulp and paper industry
  • Particle board systems in the wood industry
  • Shredding machines in the recycling industry
  • Drying processes in the construction materials industry
